Design

More in this section

Ein Feld mit Powergrass zu planen ist nicht schwierig.

Die Planung eines Feldes mit PowerGrass ist gleich wie die eines professionellen Naturrasenplatzes.Alles wurde so entwickelt, um die Investitionen mit hochwertigen Materialien zu optimieren.

Wie in der Projektstudie ermittelt, berücksichtigen wir alle möglichen Eigenschaften die für eine erfolgreiche und effiziente Installation mit besonderem Augenmerk auf das Klima der Region zusammenhängt. Die Art der Boden- und Wasserqualität für die Bewässerung und dabei natürlich auch die Berücksichtigung der vorgebenden Regeln der FIFA für das Verlegen von Naturrasenplätzen

Es ist wichtig, die Bedürfnisse des Kunden zu verstehen und die Verfügbarkeit von kompetenten Mitarbeitern das ganze Jahr über zu gewährleisten. Die Pflege von PowerGrass muss nicht komplex oder teuer sein, sondern einfach nur konstant.

Die Wartung von PowerGrass ist um einiges einfacher und günstiger aber sie muss regelmäßig gemacht werden.

Kompetente Mitarbeiter, durch uns angelernt, werden keine Schwierigkeiten haben mit der Wartung eines Feld mit PowerGrass.

Die Zeitaufwendung kommt dem eines Kunstrasens gleich, besondern wenn sie das mähen dem CutCat überlassen.

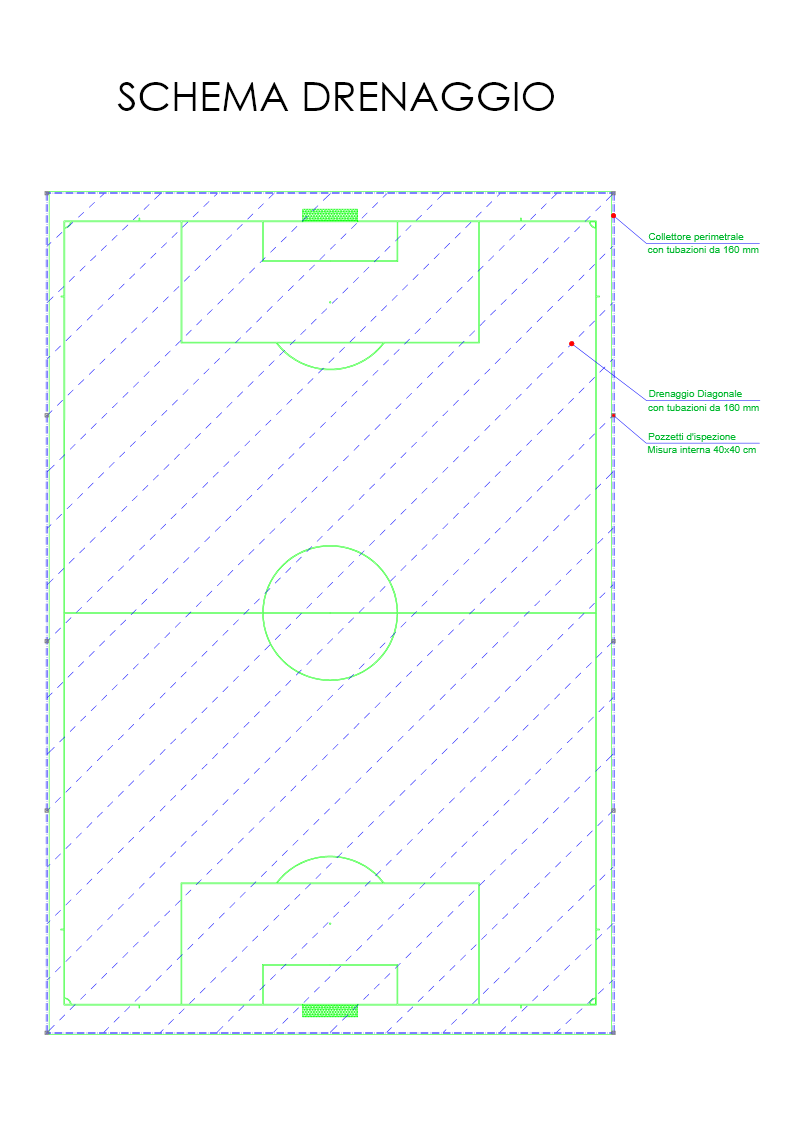

Schema di DrenaggioSchema di Drenaggio

Das Entwässerungssystem ist wesentlich um den Regenwasserüberschuss zu entfernen und zerstreut große Teile davon in den Untergrund um eine Belastung der Kanalisation zu vermeiden. Die Entwässerungsschicht ist in der Lage, Wasser im Untergrund aufzunehmen, so sparen Sie kostbare Ressourcen.

Ein Entwässerungssystem zu installieren ist sehr einfach. Installieren Sie die Hauptentwässerungsanlagen nachdem sie den Grund geebnet und geordnet haben mit zwei bis vier Ebenen. Sie graben bis zu 50 cm in die Tiefe auf dem gesamten Bereich der zu entwässernden Fläche. Auch um das Wasser in einer Wassergrube zu sammeln ist die gleiche Tiefe der Aushebung genug. Danach werden Entwässerungsrohre von 160mm verlegt, dieser wiederum werden mit Kies bis an die Oberfläche bedeckt. Die Ableitung von überschüssigem Wasser kann direkt ins Grundwasser oder in Regenwassergruben vorgenommen werden.

The wells for the inspection, are not essential, but it is advisable to carry one, every time the pipe changes direction and every 30 meters along a level surface. Even less need the drainage channels because the background absorbs water which is dispersed or removes through the pipes, but if your budget allows, and if the area is prone to heavy rainfall or is subject to heavy snowfall, the drainage channel assists water collection flowing on the surface.

Then you need to realize the secondary drainage system dividing the field long each of the two axes approximately every 6 meters, then draw a diagonal to the first point of the vertical axis with the first point of the horizontal axis, and so on until the end. Diagonal drains can be achieved with mini excavator or chain excavator with section size between 12 and 30 cm and up to 35 cm deep. Following is posing a corrugated tube drainage from 90 mm ​​that is covered with crushed gravel up to the surface.

Depending on the type of background (if water infiltration is high or not), the rainfall in the area (light or heavy rain) and the available budget must choose between a) a complete layer of crushed gravel over the entire surface or b) additional slit drain in distance 25-50 cm dug with proper equipment and filled with coarse and very coarse sand.

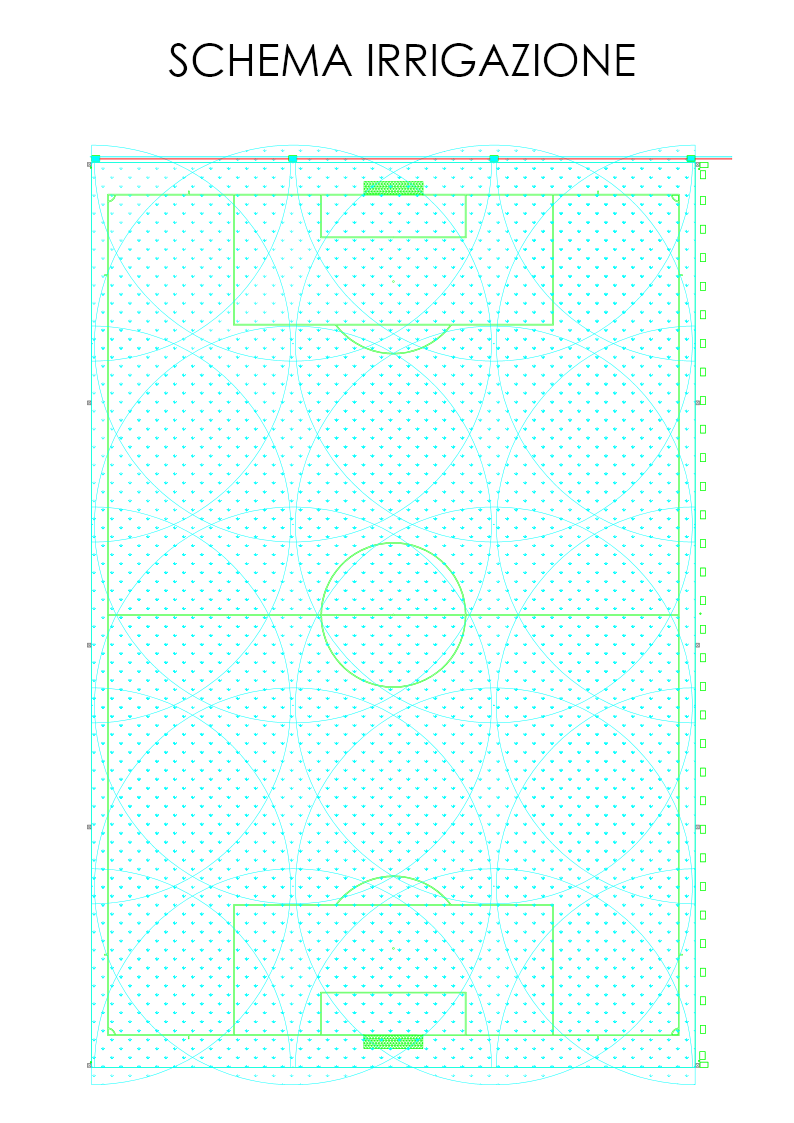

Schema IrrigazioneSchema Irrigazione

The irrigation system with 24 pop-up sprinklers of medium-range is designed to distribute the water more evenly than those at long range and rationalize better the consuption of the water.

At the top of the sprinkler shall be a small soft rubber cup to contain a small natural grass sod installed on the same level of the pitch. In fact, when the system is off, it is hard to locate sprinklers in the ground.

The sprinklers can be connected to a solenoid valve singly or two sprinklers in the same valve. In the second case one must take into account a) to connect the sprinklers with a radius of action homogeneous, for example in a football field normally there are sprinklers with three different radii of action at 90°, 180° or 360° and b) combine sprinklers possibly non-contiguous areas as a good rule of thumb is to alternate the irrigated areas to make sure that the water in the previous area or sprinkler penetrate the soil.

Programming is done with a control unit by starting 1, 2 or 4 sprinklers together depending on the number of valves, the amount and pressure of the water available.

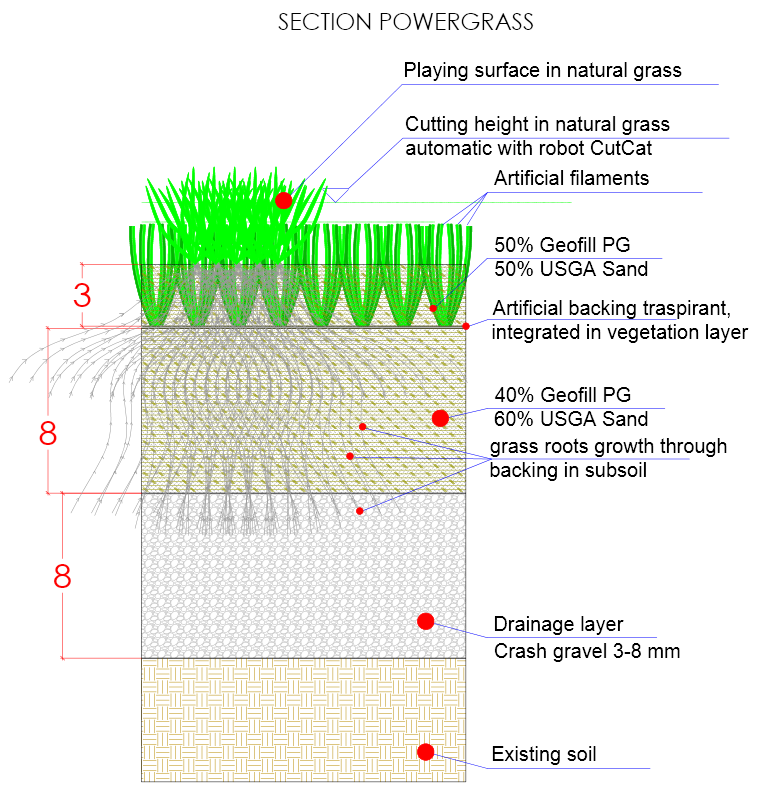

Cross section PowerGrassCross section PowerGrass

A simple and effective section in accordance with the DIN standards for the construction of natural grass fields.

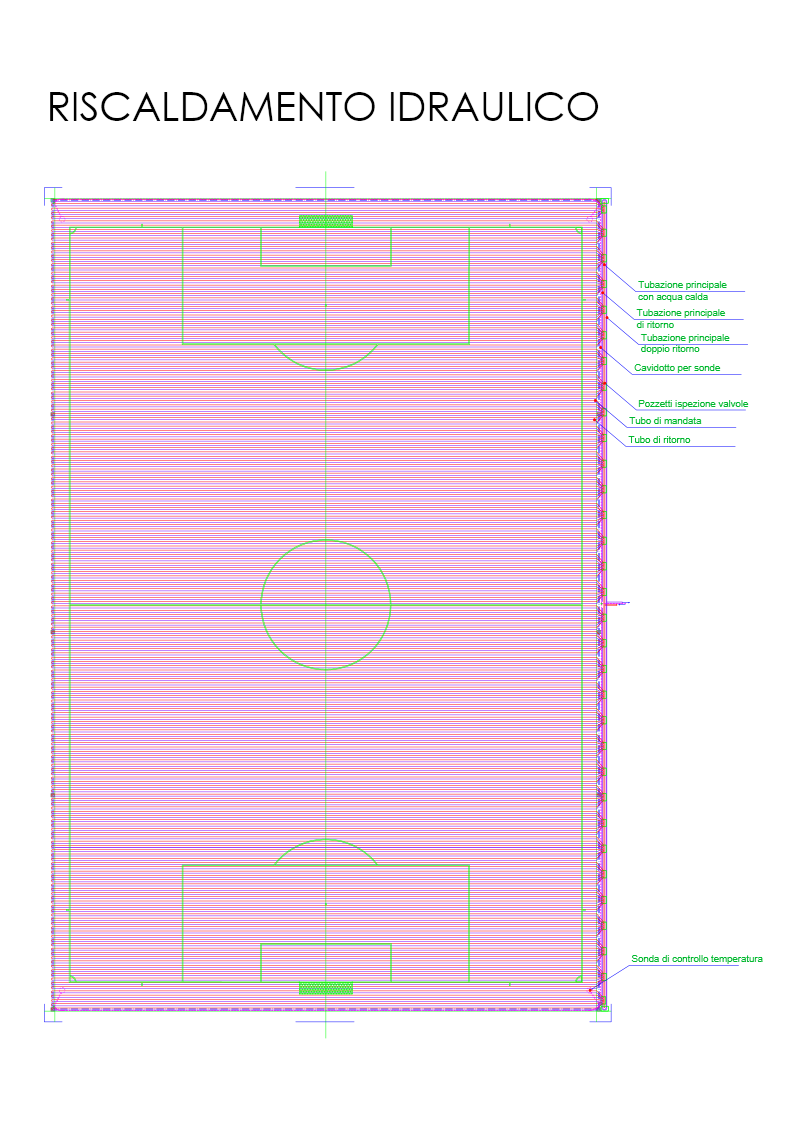

Schema riscaldamentoSchema riscaldamento

Where winter is very cold, is good to provide a hot water or electric heating system. Note: heating system is only used to thaw the ground, but it creates damages if you try to stimulate the growth of the grass.

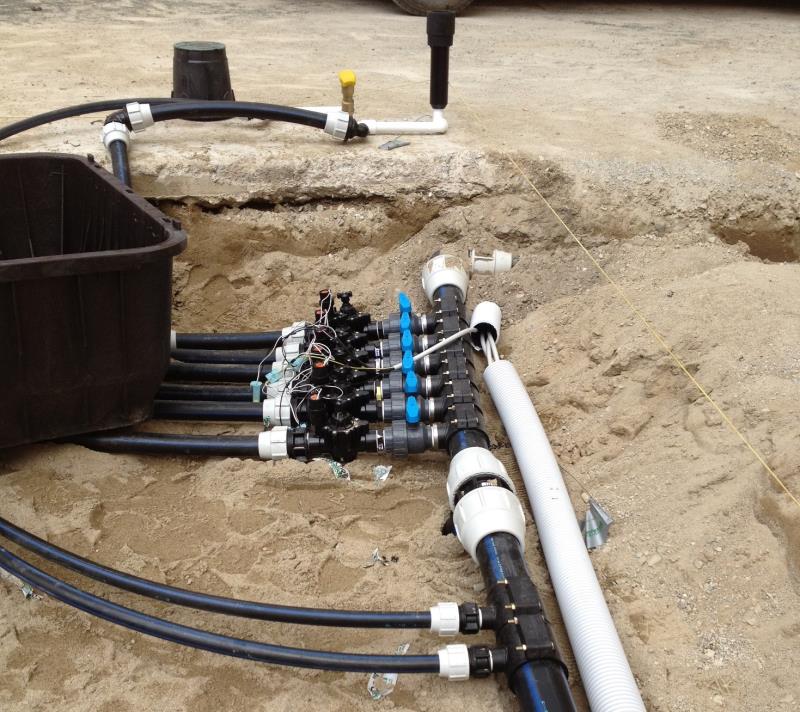

Valvole IrrigazioneValvole Irrigazione

Connecting irrigation valves at the San Siro.
